면취기

제목

각도 조절 Q면 각면기

작성자
관리자
작성일
2010.09.24
첨부파일0
추천수
0
조회수
4077
내용

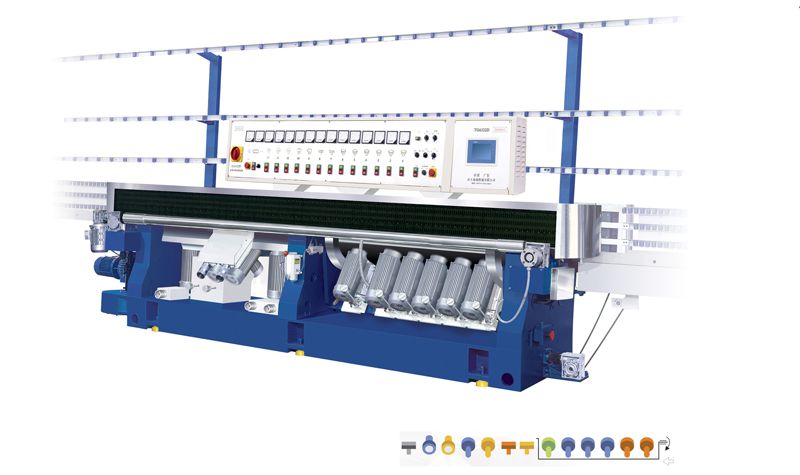

중국내 최고 품질의 Q면 각면기입니다.

(세계 유일의 제품: 20-70도 각도조절)

Foshan First Glass Machinary사 제품.

FDM6053 // FDM7075
유리 SIZE 50×50mm
~ 3000×3000mm
유리 두께 3~30mm
각도조절  20-70도
최대가공폭 3,000mm
유리 최대중량 2000kg
작업 속도 0~10m/min
총 전기용량 35.4kw
작업 높이 900mm
기계 size 8,900×1,400×2750mm
기계 총 중량 8,000kg

1. 3~30mm 두께까지의 유리를 각면으로 면을 가공할 수 있으며 유리크기는 최소 50 X 50mm이다.
2. 유리두께는 PLC로 작동하기 때문에 정밀도가 뛰어나고 조작하기가 매우 쉽다.
3. 몸체 구성은 주물로 되어있기 때문에 변형을 극소화하고 기계진동과 정밀도를 크게 향상시킴.
4. 모터는 특수하게 코일뭉치와 스핀들을 연마 열처리하여 분리, 조립되므로써 베아링 수명이 향상되고 진동이 없다.
5. 컨베어는 특수한 구름 베어링으로 되어있어 강제 마찰식보다 부하가 적고 수명이 반영구적이다.
6. 컨베어 가이드 마모를 방지하기 위해 자동 중앙식 급유장치가 되어 있다.
7. 포리싱(광) 휠은 PLC로 방식으로 Sensor가 자동으로 유리를 감지하면 휠이 유리에 밀착되므로 수동 조절이 필요 없고 작업이 용이하다.
8. 애리스(이도면) 휠은 유리두께의 차이에 따라 자동으로 조절되어 진다.
9. 선진화된 기계적 모델을 작고 견고하게 제작하였다.



본 제품은 고객의 주문사양이나 제품 향상을 위하여 변경될 수 있습니다.


Glass size 60×60mm
~ 3000×3000mm
Glass thickness 3~30mm
Glass weight 2000kg
A working speed 0~6m/min
power consumption 30.25kw
A working height 900mm
Machine size 8,300×1,400×2600mm
Machine weight 6,800kg

1. Be able to grind the edge on from 3~30mm thick glass and minimum glass size for working is 60×60mm.
2. The outstanding precision of glass and easy use to manipulate the thickness of glass which are regulated by P.L.C
3. Minimize the modification and vibration of machine and improve accuracy at the same time because the body of machine are made of a casting
4. Increased the life span of bearing and almost no vibration of motor by grinding and treating spindle and related parts with heat.
5. Conveyors with special bearing are semi-permanent.
6. Automatic central lubrication device set up to prevent wear of conveyor guide.
7. Easy to work without adjustment of polishing wheel because PLC senses the movement of glass and allows polishing wheel to attach automatically to glass in transit.
8. Automatic adjustment of arris wheel in accordance with the difference of glass thickness.
9. Making the machine smaller and stronger with advanced mechanical techniques.
